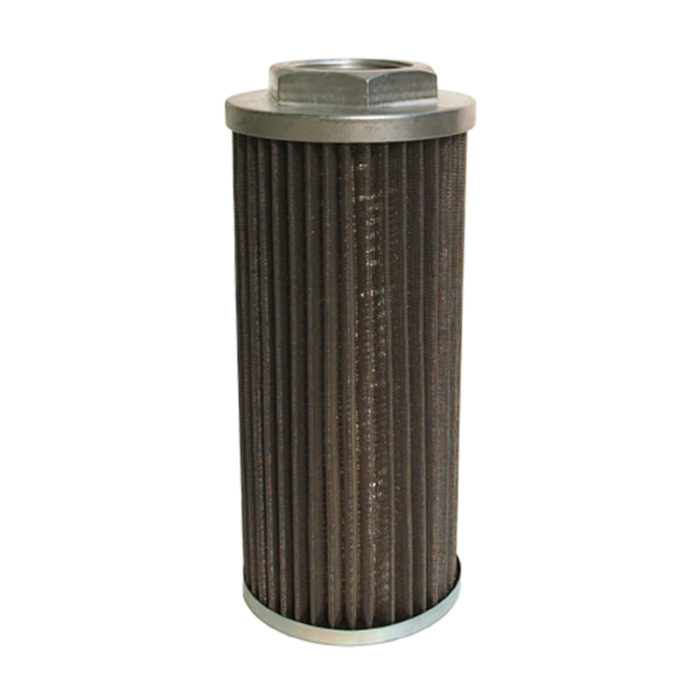

EEST

Product Description

• • 500 l/min max. flow rate
  • installation in-tank mounting
  • application in reservoir equipment
  • compliant with industry relevant ISO standards(see ISO test below)

Technical Specifications

• • • Application:Suction Strainers
    • Port size: Threaded Connections according to BSP and NPT standard in ½”to 3”
    • Flow rate: max. 500 l/min
    • Element Collapse Pressure:  1 bar
    • By-pass opening pressure: Δp 0.3 bar ± 10%
    • Connector :Aluminium
    • End caps & core :Zinc plated steel
    • Compatibility: Suitable for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable oils(for use with water or other fields please contact our technical department)
    • Tested according to ISO standards:
      ISO2941 Collapse/burst resistance
      ISO2942 Fabrication integrity
      ISO2943 Material compatibility integrity
      ISO3723 Method for end load test
      ISO3724 Flow fatigue characteristics
      ISO3968 Pressure Drop vs. Flow Rate
